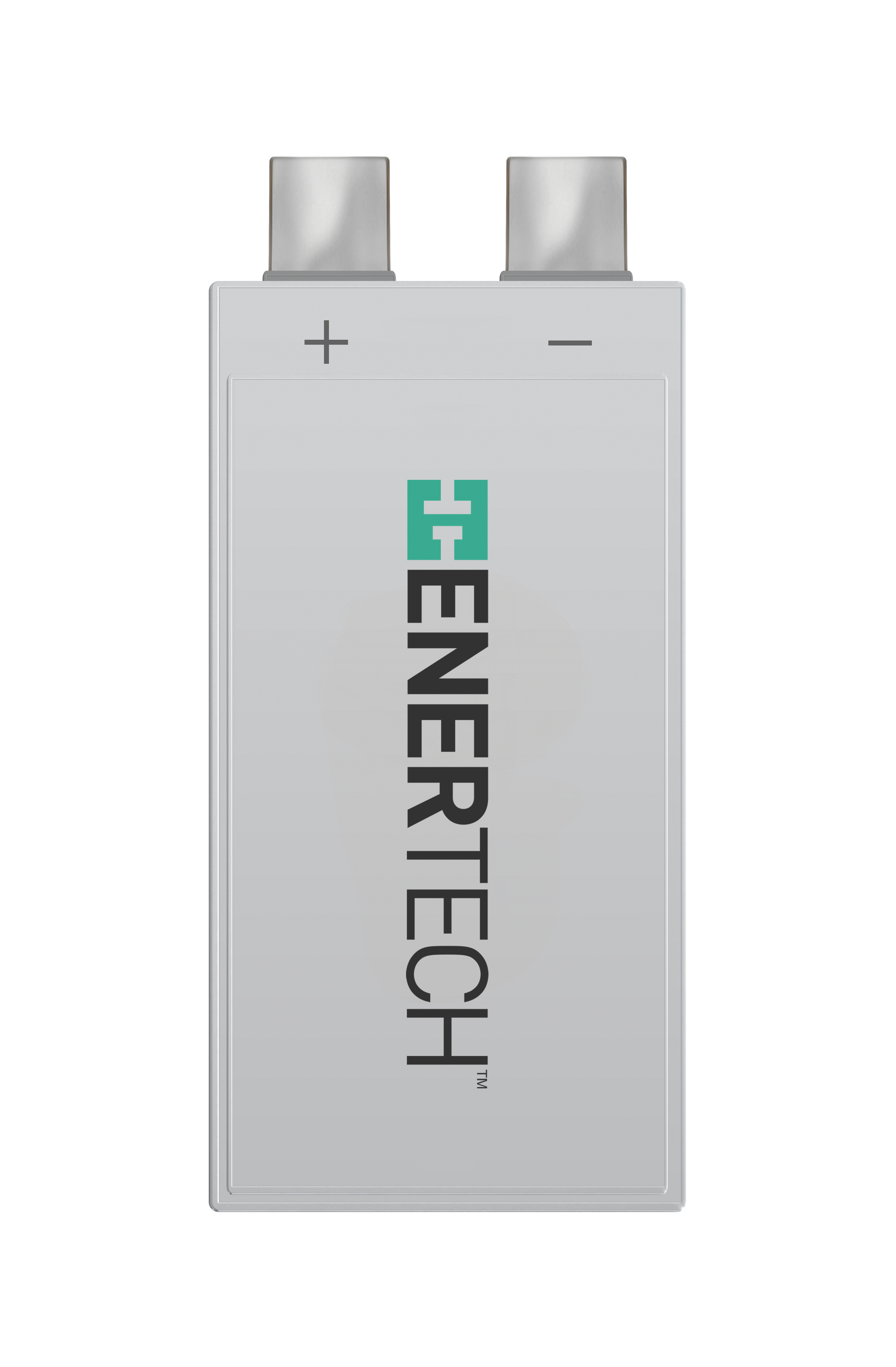

SPB8060155V2
This specification defines the characteristics of a rechargeable lithium ion battery manufactured by ENERTECH INTERNATIONAL INC.
enertech
Configuration
| Item | Specification | |
|---|---|---|
| Nominal Capacity | 8.10 Ah | |
| Energy Density | Volumetric | 403 Wh/ℓ |
| Gravimetric | 200 Wh/㎏ | |
| Weight | ≤ 152 g | |
| Nominal Voltage | 3.70 V | |
| Operating Voltage Range | Max. | 4.20 V |
| Min. | 2.70 V | |
| Standard Current | Charge | 4.05 A |
| Discharge | 4.05 A | |
| Maximum Current | Charge | 40.5 A |
| Discharge | 64.8 A | |
| Peak Discharge | 121.5A (15C) (≥SOC50%, ≤10sec) | |
| Internal Resistance | < 3.0 mΩ | |
| Operating Temperature | Charge | 0°С ~ 45°С |
| Discharge | -20°С ~ 55°С | |
| Recommend | 25 ± 3℃ | |
| Storage Temperature | < 1 month | 0°С ~ 45°С |
| < 1 year | 0℃ ~ 25℃ | |
| Storage Humidity | 45 ~ 85%RH | |
| Cell Dimensions | Thickness | 8.0 mm + 0.0 / - 0.6mm |
| Width | 60.0 +1.0 / -2.0mm | |
| Length | 155.0 +2.0 / -1.0mm | |
