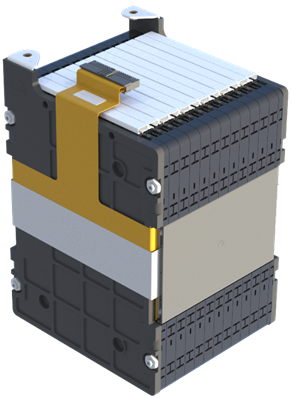

MP500-050
Specifications
This specification defines the characteristics of a rechargeable lithium ion battery manufactured by ENERTECH INTERNATIONAL INC.
enertech
SPECIFICATION
| Item | Specification | |
|---|---|---|
| Voltage (Nominal) | 44.4V (32.4 ~ 50.4 V) | |
| Capacity | 50 Ah | |
| Configuration | 24 Cells of 12s2p | |
| Charging Method | CC-CV | |
| Charging Voltage | 44.4 V | |
| Charging Current | Standard | 25 A |
| Maximum | 150 A | |
| Discharging Current | Standard | 25 A |
| Maximum | 150 A | |
| Internal Resistance | - | |
| Operating Temperature | Charge. | 0 ~ 55℃ |
| Discharge. | -20 ~ 55℃ | |
| Dimensions | Thickness | 283.7 mm |
| Width | 198 mm | |
| Length | 178 mm | |
| Weight | < 16 kg | |
